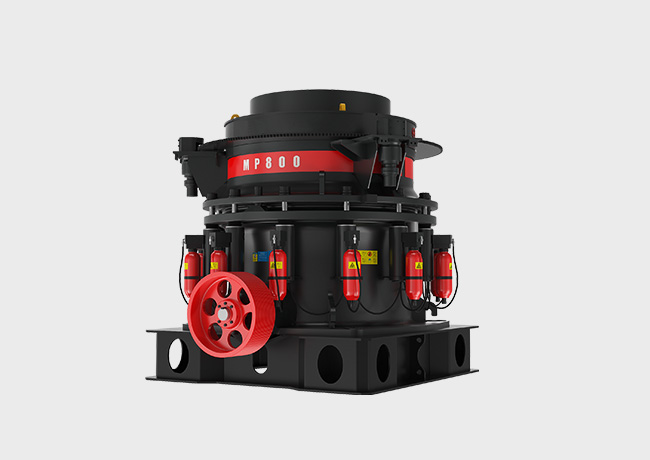

The MP series cone crusher inherits the technological advantages of the HPM series and is specifically designed for medium-fine crushing operations in large-scale mines. This series of crushers features strong production capacity, high crushing ratio, low production costs, high reliability, high automation, and convenient operation and maintenance.
Dedicated to providing turnkey projects for more than 200,000 customers.
| capacity(t/h) | Tight edge ore discharge port | ||||||
| 50mm | 38mm | 25mm | 19mm | 13mm | 10mm | ||
| Model | MP800 | 1460-1935 | 1100-1285 | 735-980 | 580-690 | 495-585 | 450-530 |
| MP1000 | 1830-2420 | 1375-1750 | 915-1210 | 720-900 | 615-730 | 560-650 | |
| MP1250 | 2290-3025 | 1720-2190 | 1145-1510 | 900-1125 | 770-915 | 590-700 | |
| MP2500 | 4305-5687 | 3234-4117 | 2153-2839 | 一 | 一 | 一 | |
Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
| Model | Tight edge ore discharge port | capacity(t/h) |
| MP800 | 50mm | 1460-1935 |
| 38mm | 1100-1285 | |
| 25mm | 735-980 | |
| 19mm | 580-690 | |
| 13mm | 495-585 | |
| 10mm | 450-530 | |
| MP1000 | 50mm | 1830-2420 |
| 38mm | 1375-1750 | |
| 25mm | 915-1210 | |
| 19mm | 720-900 | |
| 13mm | 615-730 | |
| 10mm | 560-650 | |
| MP1250 | 50mm | 2290-3025 |
| 38mm | 1720-2190 | |
| 25mm | 1145-1510 | |
| 19mm | 900-1125 | |
| 13mm | 770-915 | |
| 10mm | 590-700 | |
| MP2500 | 50mm | 4305-5687 |
| 38mm | 3234-4117 | |
| 25mm | 2153-2839 | |
| 19mm | 一 | |
| 13mm | 一 | |
| 10mm | 一 |
注:产量根据不同物料,进料粒度等因素其结果将有所不同
