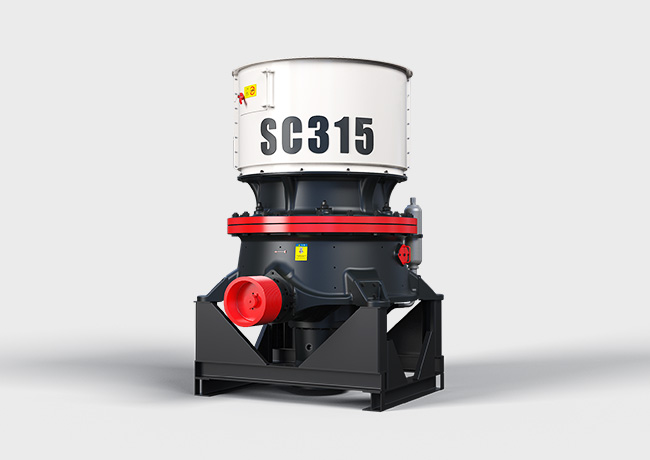

SC SERIES SINGLE-CYLINDER HYDRAULIC CONE CRUSHERS-

EQUIPMENT ADVANTAGE

Constant Crushing Chamber Vision

Throughout the entire lining-plate wear processing, the discharge particle size and capacity remain essentially unchanged.

Positive Pressure dust-prevention system

The positive pressure dust-prevention system effectively prevents dust and other debris from entering the equipment and oil tank, avoiding lubricating oil contamination.

Convenient Change of the Non-filling Lining Plate installation

The non-filling structure can reduce the replacement time of the lining plate, save replacement costs, and increase the equipment's normal operating time.

Intelligent Control System

The human-machine interface is easy to understand, use and maintain, which can maximize productivity.

WHAT PEOPLE SAY?

The jaw crusher is a solid piece of equipment. It's built tough and handles even the hardest materials with ease. It’s easy to use and maintain, which is a big plus if you’re working on a busy site. The crusher gives you consistent, reliable performance, and the adjustable settings let you control the size of the crushed material to suit your needs.

Mike peter

USA

24/08/2023

I've been using the Recycling Construction Waste service, and it’s been a game-changer for my projects. The whole process is straightforward and efficient, making it easy to get rid of debris and leftover materials. I love that it’s eco-friendly—knowing that the waste is being repurposed rather than just ending up in a landfill is a big deal for me. Plus, it saves me money on disposal costs and helps keep my worksite clean and organized. Overall, it’s a reliable, cost-effective solution that I’d highly recommend to anyone in construction.

Matthew

Jamaica

12/04/2024

This cone-crushing production line exceeded my expectations. The finished products after processing are of good quality, and the cubic content of the products is more than 85%. After selling them, the profit is high. I am very grateful to FTM Machinery and will continue to expand the business in the future.

Nathan

Germany

06/11/2022

I am very satisfied with this rock crusher. Its crushing efficiency is truly impressive; it can process a large amount of stone in a short time, completely exceeding my expectations. The crushing effect is also excellent, producing uniformly sized stone particles of high quality, perfectly meeting the needs of our construction projects.

Patrick

The Philippines

08/10/2023

What surprises me even more is the durability of this crusher. I've been using it for a while now, and it has hardly had any issues. Maintenance is also very convenient, saving a lot of time and costs. The operation is especially simple, with an intuitive control system that even beginners can quickly master.

Ryan

Indonesia

17/01/2024

TECHNICAL PARAMETERS

SC Single Cylinder Cone Crusher Medium Crushing Series

Model	Cavities	Feeding Size （mm）	Maximum Feeding Size （mm）	Minimum Discharging Size （mm）	Power （kw）	Capacity（t/h）
SC100S	C1	240	175	22	90	85-170
SC100S	C2	200	160	19	90	70-130
SC160S	C1	360	290	25	160	125-345
SC160S	C2	300	240	22	160	108-305
SC250S	C1	450	360	35	250	265-524
SC250S	C2	400	320	29	250	225-448
SC315S	C1	560	450	41	315	349-1050
SC315S	C2	500	400	38	315	318-892
SC450S	C1	600	480	44	450	498-1500
SC450S	C2	480	385	41	450	454-1274

SC Single Cylinder Cone Crusher Fine Crushing Series

Model	Cavities	Feeding Size （mm）	Maximum Feeding Size （mm）	Minimum Discharging Size （mm）	Power （kw）	Capacity（t/h）
SC100	F1	150	120	10	90	45-135
	F2	90	70	10		43-118
	F3	50	40	6		25-40
SC160	F1	200	160	13	160	69-215
	F2	115	90	10		57-184
	F3	75	60	8		70-90
SC250	F1	240	190	16	250	116-396
	F2	140	110	13		97-346
	F3	70	55	9		90-251
SC315	F1	275	220	32	315	177-662
	F2	215	170	29		209-643
	F3	175	140	29		162-552
	F4	85	70	19		175-325
SC560	F1	300	240	22	560	448-1512
	F2	195	155	19		380-1373
	F3	90	70	13		357-912
SC750	F1	370	295	25	750	394-2181
	F2	300	240	19		342-2020
	F3	230	185	16		267-1814
	F4	120	95	13		248-1165
	F5	85	70	10		185-1170

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.

SC Single Cylinder Cone Crusher Medium Crushing Series

Model	Cavities	Feeding Size （mm）	Capacity（t/h）
SC100S	C1	240	85-170
SC100S	C2	200	70-130
SC160S	C1	360	125-345
SC160S	C2	300	108-305
SC250S	C1	450	265-524
SC250S	C2	400	225-448
SC315S	C1	560	349-1050
SC315S	C2	500	318-892
SC450S	C1	600	498-1500
SC450S	C2	480	454-1274

SC Single Cylinder Cone Crusher Fine Crushing Series

Model	Cavities	Feeding Size （mm）	Capacity（t/h）
SC100	F1	150	45-135
	F2	90	43-118
	F3	50	25-40
SC160	F1	200	69-215
	F2	115	57-184
	F3	75	70-90
SC250	F1	240	116-396
	F2	140	97-346
	F3	70	90-251
SC315	F1	275	177-662
	F2	215	209-643
	F3	175	162-552
	F4	85	175-325
SC560	F1	300	448-1512
	F2	195	380-1373
	F3	90	357-912
SC750	F1	370	394-2181
	F2	300	342-2020
	F3	230	267-1814
	F4	120	248-1165
	F5	85	185-1170
