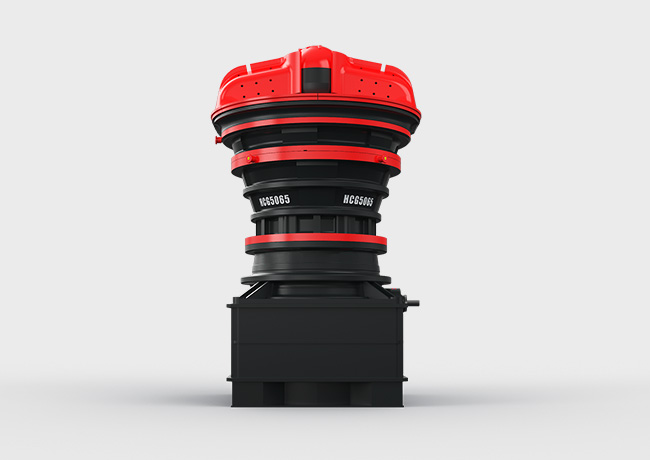

The HCG series gyratory crusher, as a large-scale coarse crushing equipment, its processing capacities range from 2000 to 10000 tons per hour. It is capable of crushing various materials of high and medium hardness. It has been successfully used in multiple industries including metal mines, aggregate mines, and many industries in the field of the large-scale projects and construction.
Dedicated to providing turnkey projects for more than 200,000 customers.
| Model | Feeding opening size (mm) |
Maximum Feeding size (mm) |
Adjustment range of discharge port (mm) |
Capacity (t/h) |
Power (kw) |
Dimensions L×W×H(mm) |
| HCG4265 | 1065 | 900 | 140-175 | 2018-2878 | 400 | 3940×4170×6900 |
| HCG5065 | 1270 | 1050 | 150-175 | 2403-2943 | 400 | 4460×4430×7610 |
| HCG5475 | 1370 | 1150 | 150-200 | 2893-3493 | 450 | 4930×4925×8410 |
| HCG6275 | 1575 | 1350 | 150-200 | 2898-4338 | 450 | 5580×5250×9090 |
| HCG6089 | 1525 | 1300 | 165-230 | 4203-5813 | 630 | 5590×5445×10470 |
| HCG60110 | 1525 | 1300 | 175-250 | 5543-8898 | 1250 | 6200×5940×11390 |
Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
| Model | Feeding opening size (mm) |
Maximum Feeding size (mm) |
Capacity (t/h) |
| HCG4265 | 1065 | 900 | 2018-2878 |
| HCG5065 | 1270 | 1050 | 2403-2943 |
| HCG5475 | 1370 | 1150 | 2893-3493 |
| HCG6275 | 1575 | 1350 | 2898-4338 |
| HCG6089 | 1525 | 1300 | 4203-5813 |
| HCG60110 | 1525 | 1300 | 5543-8898 |
Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
