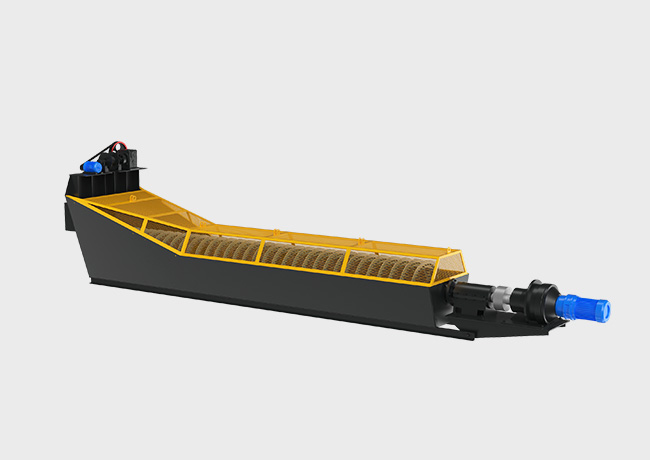

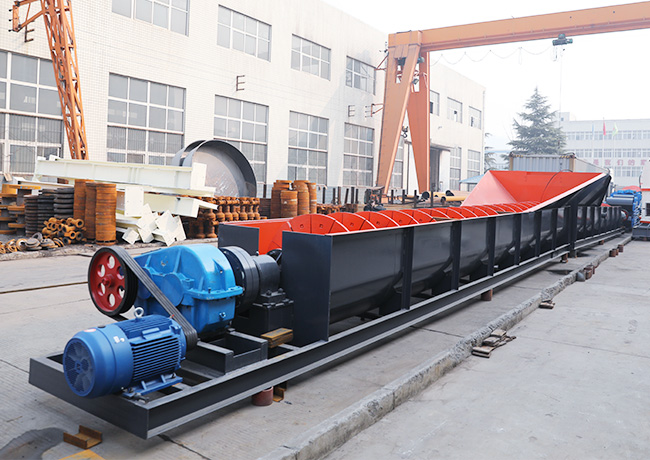

The spiral sand washer primarily uses the spiral device inside the equipment to stir the sand and gravel, mixing the soil and water, which are then discharged through the flow outlet of the equipment. Meanwhile, the sand and gravel are gradually screened by the action of the spiral device and discharged from the top outlet, thus achieving the cleaning and screening effect for the sand and gravel.
Dedicated to providing turnkey projects for more than 200,000 customers.
| Model | Screw diameter (mm) |
the sink length (mm) |
screen plate size (mm) |
Feeding size (mm) |
Sand production (t/h) |
standard segregator specification |
standard total power (kw) |
| LX765-15-55 | 765 | 6500 | 1500x3000 | ≤10 | 20-60 | 2x250 | 39 |
| LX915-15-65 | 915 | 7650 | 1500x3000 | ≤10 | 30-100 | 2x300 | 47 |
| 2LX915-24-100 | 915 | 7650 | 2400x4500 | ≤10 | 60-200 | 4x250 | 81 |
| LX1115-18-75 | 1115 | 8650 | 1800x4500 | ≤10 | 40-120 | 2x350 | 60 |
| 2LX1115-30-120 | 1115 | 8650 | 3000x4800 | ≤10 | 80-240 | 4x300 | 120 |
| Model | Sand production (t/h) |
standard total power (kw) |
| LX765-15-55 | 20-60 | 39 |
| LX915-15-65 | 30-100 | 47 |
| 2LX915-24-100 | 60-200 | 81 |
| LX1115-18-75 | 40-120 | 60 |
| 2LX1115-30-120 | 80-240 | 120 |
