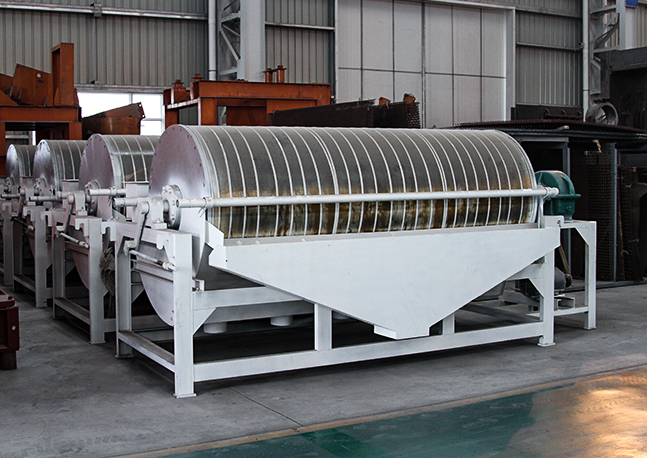

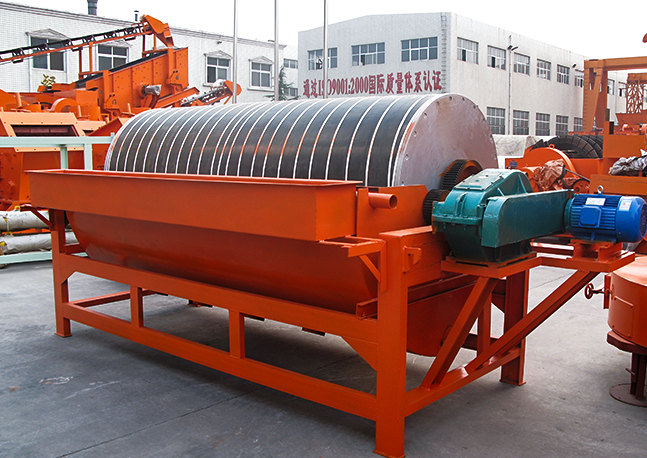

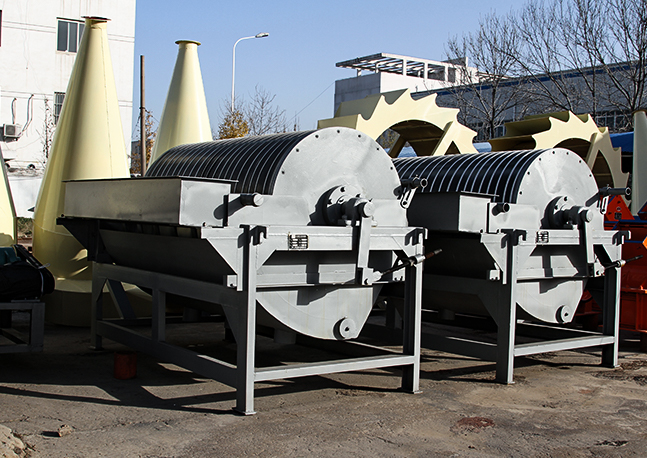

Magnetic separator---according to the different magnetic properties of minerals, the separation of materials with strong, medium or weak magnetic properties, different minerals are subjected to different forces in the magnetic field of the magnetic separator, thus being separated.
The magnetic separator is suitable for wet magnetic separation of materials with a particle size of less than 3 mm, such as magnetite, pyrrhotite, roasted ore, ilmenite, etc. It is also used for iron removal and purification of materials such as coal, non-metallic minerals, building materials, quartz, feldspar, kaolin, etc. it can also be used for wastewater treatment in steel plants and power plants, purification of contaminated chemical raw materials.

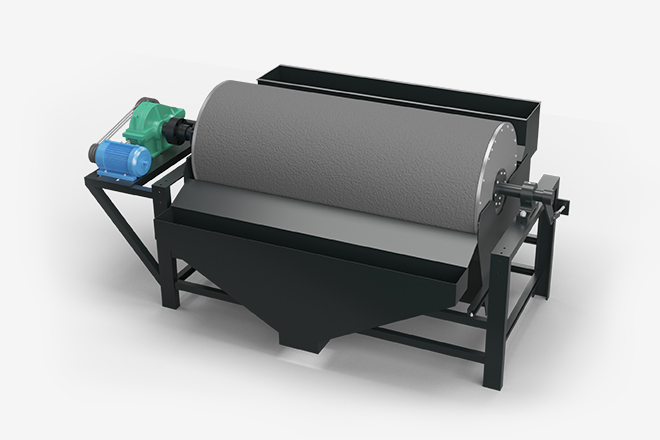

Magnetic separators use magnetic fields to separate magnetic and non-magnetic materials. When materials pass through the magnetic separator, magnetic particles (such as magnetite) are adsorbed to the surface of the magnetic roller or magnetic system under the action of the magnetic field, and non-magnetic particles (such as quartz and feldspar) fall along natural trajectories because they are not affected by magnetic force, thereby achieving separation.
I am very satisfied with this magnetic separator. Its efficiency is impressive and it can separate a large amount of minerals in a short time, which completely exceeded my expectations. The effect is very good and fully meets the needs of our project.
Mike peter
USA
24/08/2023
What surprised me even more is the durability of this magnetic separator. I have used it for a while and there have been almost no problems. It is also very convenient to maintain, saving a lot of time and cost. The operation is particularly simple, and the control system is intuitive and easy to use, even beginners can quickly master it.
Matthew
Jamaica
12/04/2024
We were in urgent need of iron ore mining equipment at the time, and their professional engineers recommended crushers, ball mills, magnetic machines, vibrating screens and drum screens! "In just one month, all the equipment was installed, and all indicators fully met the operating requirements, bringing good economic benefits to our plant. Therefore, in future projects, cooperation with FTM will be our top priority."
Nathan
Germany
06/11/2022
I think their magnetic separation equipment has reached the level I want, and I will continue to work with them. To extract more minerals.
Patrick
The Philippines
08/10/2023
I am very satisfied with this magnetic separator. I compared many companies and finally chose this company. Their product quality, service and price are very good. At present, my project is progressing smoothly. The machine is sturdy and durable. I like this company and will recommend it to more friends in the future.
Ryan
Indonesia
17/01/2024
Dedicated to providing turnkey projects for more than 200,000 customers.
| Model |
Shell diameter （mm） |
Shell lenght （mm） |
Shell rotation speed（r/min） |
Feeding size （mm) |
Processing capacoty （t/h） |
Power（kw） |
| CTB6012 | 600 | 1200 | <35 | 2-0 | 10-20 | 1.5 |
| CTB6018 | 600 | 1800 | <35 | 2-0 | 15-30 | 2.2 |
| CTB7518 | 750 | 1800 | <35 | 2-0 | 20-45 | 2.2 |
| CTB9018 | 900 | 1800 | <35 | 3-0 | 40-60 | 3 |
| CTB9021 | 900 | 2100 | <35 | 3-0 | 45-60 | 3 |
| CTB9024 | 900 | 2400 | <28 | 3-0 | 45-70 | 4 |
| CTB1018 | 1050 | 1800 | <20 | 3-0 | 50-75 | 5.5 |
| CTB1021 | 1050 | 2100 | <20 | 3-0 | 50-100 | 5.5 |
| CTB1024 | 1050 | 2400 | <20 | 3-0 | 60-120 | 5.5 |
| CTB1218 | 1200 | 1800 | <18 | 3-0 | 80-140 | 5.5 |
| CTB1224 | 1200 | 2400 | <18 | 3-0 | 85-180 | 7.5 |
| CTB1230 | 1200 | 3000 | <18 | 3-0 | 100-180 | 7.5 |
| CTB1530 | 1500 | 3000 | <14 | 3-0 | 170-280 | 11 |
| Model | Feeding size （mm） |
Processing capacity （t/h） |
| CTB6012 | 2-0 | 10-20 |
| CTB6018 | 2-0 | 15-30 |
| CTB7518 | 2-0 | 20-45 |
| CTB9018 | 3-0 | 40-60 |
| CTB9021 | 3-0 | 45-60 |
| CTB9024 | 3-0 | 45-70 |
| CTB1018 | 3-0 | 50-75 |
| CTB1021 | 3-0 | 50-100 |
| CTB1024 | 3-0 | 60-120 |
| CTB1218 | 3-0 | 80-140 |
| CTB1224 | 3-0 | 85-180 |
| CTB1230 | 3-0 | 100-180 |
| CTB1530 | 3-0 | 170-280 |
